MAIN TECHNICAL DATA
Degree of Protection:IP00
Primary: 120V 60Hz
Secondary: 24VAC
Insulation class:Class A、Class B
Insulation:3.75KV Rms
Ambient temp: (t)-40℃
Standards compliant:
EN60065:2006/UL5085-2/UL1446

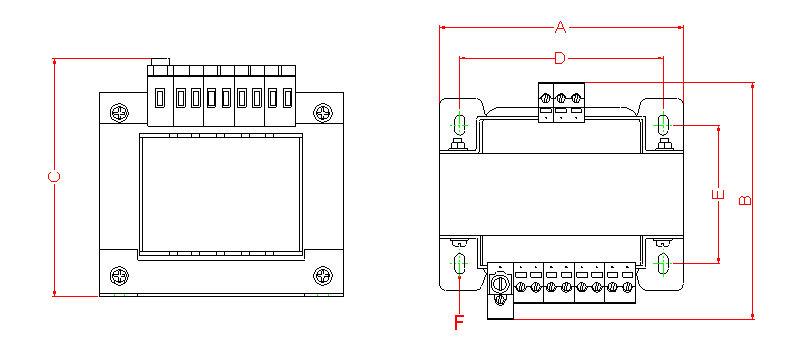

Structure diagram：
Dimensions(mm)
|
Power/VA |
A |
B |
C |
D |
E |
F |
Weight/kg |
|
50VA |
76 |
80 |
100 |
63.5 |
56 |
5×9 |
1.1 |
|
75VA |
76 |
80 |
105 |
63.5 |
61 |
5×9 |
1.5 |
|
100VA |
76 |
80 |
110 |
63.5 |
68 |
5×9 |
1.9 |
|
120VA |
86 |
85 |
115 |
71.5 |
73 |
5×9 |
2.3 |
|
150VA |
96 |
95 |
115 |
80 |
73 |
5×9 |
2.8 |
|
200VA |
120 |
115 |
90 |
100 |
70 |
5×9 |
3.5 |
|
250VA |
120 |
115 |
95 |
100 |
75 |
5×9 |
3.5 |
|
300VA |
120 |
115 |
100 |
100 |
80 |
5×9 |
5.0 |
|
400VA |
133 |
125 |
105 |
111 |
85 |
5×9 |
7.3 |
|
500VA |
133 |
125 |
110 |
111 |
90 |
6×10 |
7.8 |
|
600VA |
150 |
140 |
110 |
125 |
100 |
6×10 |
9.0 |
|
850VA |
150 |
140 |
120 |
125 |
100 |
6×10 |
11.0 |
|
1000VA |
150 |
140 |
125 |
125 |
105 |
6×10 |
12.0 |
|
1200VA |
150 |
140 |
130 |
125 |
110 |
6×10 |
15.0 |
|
1500VA |
168 |
155 |
140 |
140 |
120 |
6×10 |
17.0 |
|
2000VA |
192 |
175 |
135 |
160 |
115 |
7×12 |
22.0 |
|
2500VA |
192 |
175 |
145 |
160 |
125 |
7×12 |
26.0 |
