MAIN TECHNICAL DATA
Power:0.5～30VA
Degree of Protection:IP00
Primary: 240V 50/60Hz
Secondary: 18VAC
Insulation class:Class A、Class B
Insulation:3.75KV Rms
Ambient temp: (t)-40℃
Standards compliant:
EN61558-2-6/ UL5085-1/UL5085-2/UL5085-3/UL1446

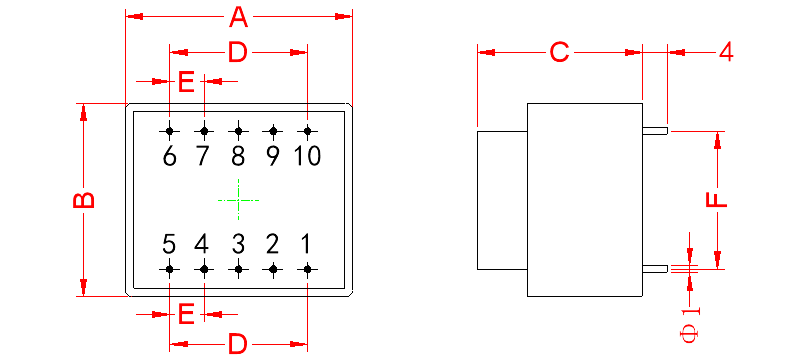

Structure diagram：
Dimensions(mm)
|
Power/VA |
A |
B |
C |
D |
E |
H |
Weight/kg |
|
1.3VA |
30.8 |
28 |
25.4 |
20 |
5.0 |
20 |
0.08 |
|
1.6VA |
30.8 |
28 |
30 |
20 |
5.0 |
20 |
0.10 |
|
2.0VA |
30.8 |
28 |
32 |
20 |
5.0 |
20 |
0.12 |
|
2.5VA |
38 |
32.5 |
32 |
20 |
5.0 |
21 |
0.12 |
|
3.5VA |
38 |
32.5 |
37 |
22.4 |
5.6 |
21.7 |
0.17 |
|
4.0VA |
51 |
36 |
22 |
30 |
5.0 |
25.8 |
0.20 |
|
5.0VA |
44 |
32.5 |
35 |
30 |
5.0 |
22.5 |
0.20 |
|
6.0VA |
51 |
42 |
35 |
29.6 |
7.4 |
29.7 |
0.24 |
|
7.0VA |
51 |
42 |
35 |
30 |
7.5 |
29.6 |
0.26 |
|
8.0VA |
51 |
43.6 |
40 |
30 |
7.5 |
29.4 |
0.30 |
|
10.0VA |
51 |
43.6 |
40 |
30 |
7.5 |
29.4 |
0.32 |
|
12.0VA |
51 |
43.5 |
45 |
30 |
7.5 |
29.5 |
0.36 |
|
12.0VA |
57 |
48.2 |
40 |
30 |
5.0 |
30.5 |
0.36 |
|
25.0VA |
63 |
53 |
53 |
30 |
5.0 |
32 |
0.72 |
Customer Design Avaiable
Zhejiang Dechuang Transformer Manufacturing Co., Ltd.
